The EC V8 ECOFIT motor is a compact, high-performance ventilation solution that combines high power with energy efficiency. Designed to meet current HVAC market demands and the growing need for efficient and sustainable ventilation, the EC V8 motor is integrated into several ECOFIT fan ranges.

Powerful and efficient EC technology

The ECOFIT EC V8 motor is an electronically commutated synchronous motor with a permanent magnet rotor and integrated microcontroller-driven control electronics.
Unlike traditional asynchronous AC motors, EC technology eliminates slip losses and ensures high efficiency across the entire operating range.

With power ratings up to 300 watts, the EC V8 motor offers high torque, making it ideal for applications requiring high airflow or stable pressure, while maintaining optimized power consumption.

Certification, safety, and international compatibility

The ECOFIT V8 EC motor is UL certified for 230V power supply, with a voltage range of 200 to 277V.
This feature ensures safe and reliable use in many electrical environments, particularly for international markets.
Like all ECOFIT EC motors, the V8 incorporates advanced monitoring and protection features:

• motor temperature control,
• stalled rotor detection,
• overload protection,

ensuring increased longevity and safe operation.

Flexible control and simplified integration

EC V8 motors can be controlled by analog signal at several levels: 0-10VDC or PWM, offering great flexibility of regulation according to the needs of the application.
This precise control capability allows for fine adjustment of air flow, noise reduction, and optimized energy consumption.

Ranges of EC fans equipped with the V8 motor

The ECOFIT V8 EC motor is integrated into several ventilation solutions:

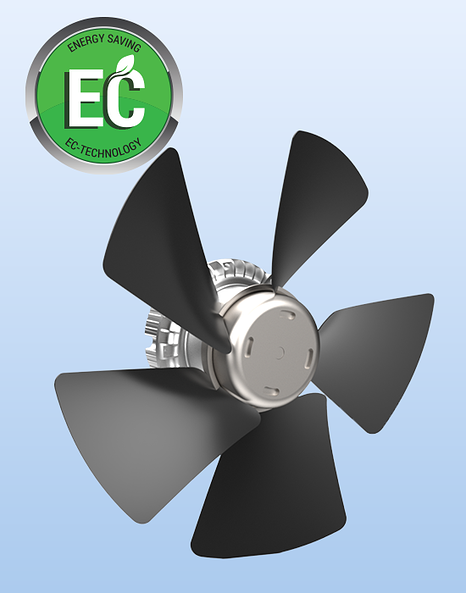

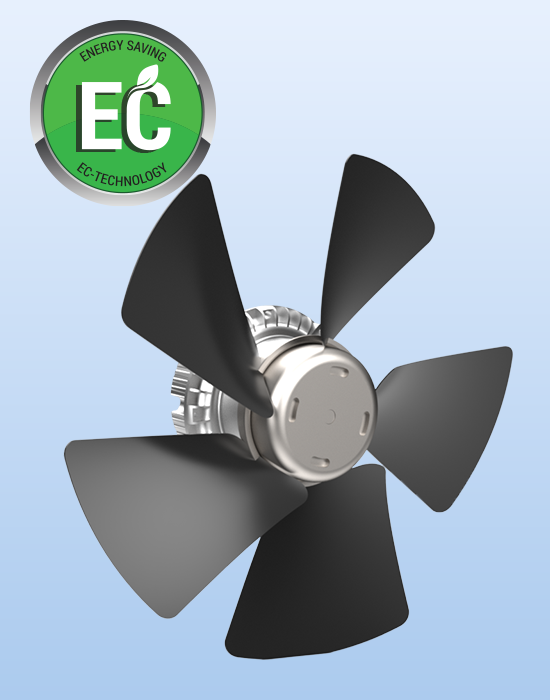

• Axial fans with diameters of 350 and 400 mm,

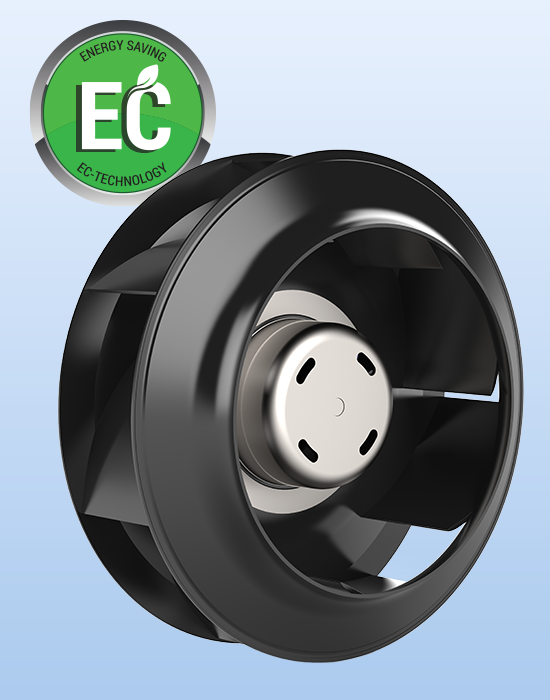

• Backward centrifugal fans with diameters of 250, 280, and 315 mm,

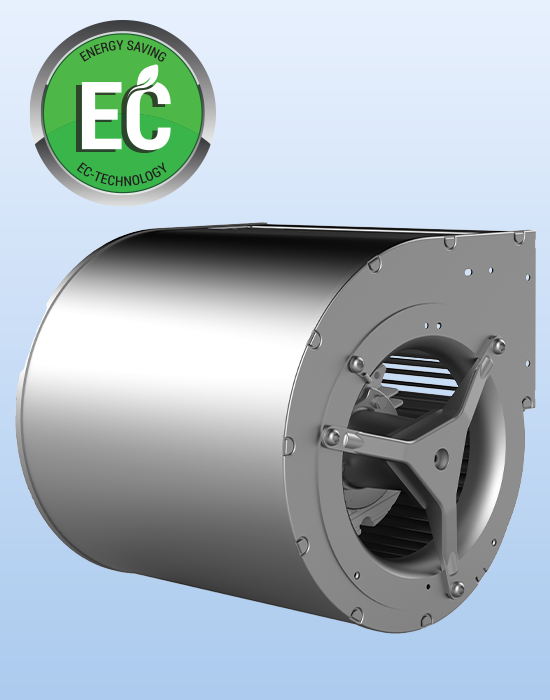

• Double inlet forward centrifugal fans with diameters of 146, 160, and 180 mm,

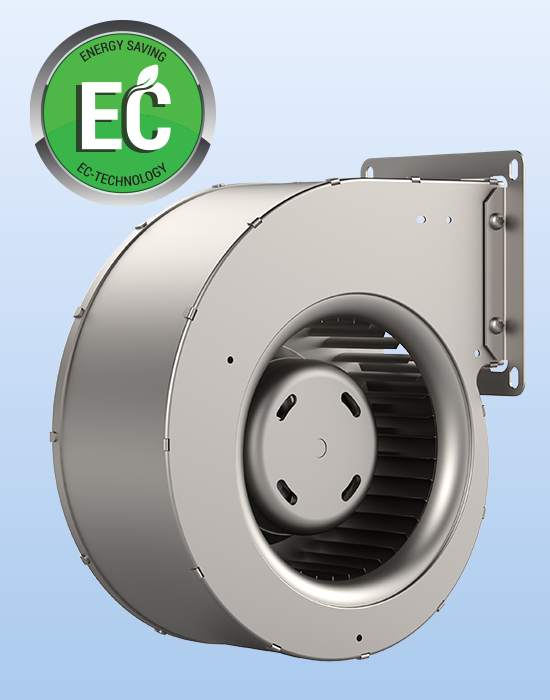

• Single inlet forward centrifugal fans with diameters of 160 and 180 mm.

This diversity makes it possible to effectively meet a variety of installation constraints, both in residential ventilation or in tertiary and technical applications.

Main applications: HVAC and data centers

EC V8 ECOFIT fans are mainly used in HVAC comfort and industrial applications. They are particularly suitable for dual-flow air handling units, where energy efficiency, quiet operation, and precise control are essential.

In addition, the use of fans equipped with the EC V8 motor is growing in data centers. Their high efficiency, reliability, and continuous operation make them an ideal solution for critical environments requiring controlled cooling.

A sustainable and cost-effective solution

Compliant with the European ErP directive, the EC V8 ECOFIT motor helps reduce energy consumption, CO₂ emissions, and operating costs.
Feel free to contact us during the design phase so that we can work with you to determine the most suitable ventilation solution for your project.
